Rotary Kiln

Shipping address: High-tech developmental zone, Zhengzhou, China
Product specification:Φ2.5×40m-Φ6.0×95m
Production capacity: 180-10000t/h
Application:Rotary kiln is used in steelworks of metallurgical industry and magnetizing roast of lean iron ore.

Contact customer service online

Features
Technical data

Revolving kiln mainly includes kiln head, kiln tail, rotary kiln supporting frames, preheating tower, cooling machine, conveyor and other parts.

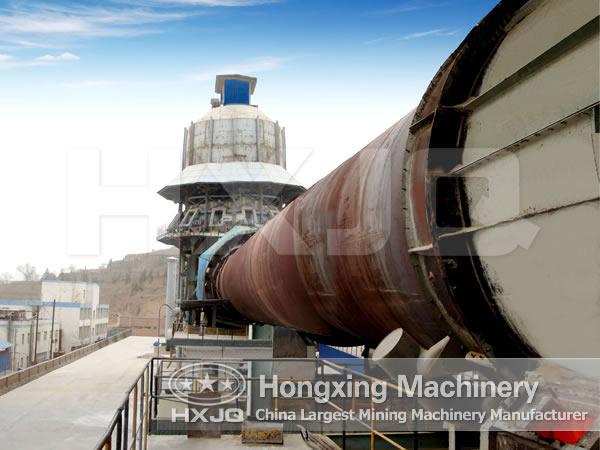

Rotary Kiln

Calcination characteristics of wet rotary kiln: raw material is adaptable for non-homogeneous materials, and raw material has uniform composition and process stability, so the clinker will has high quality and high strength level. There is less dust during the grinding, and less fly ash in kiln tail.

However, wet rotary kiln has large water demand, with high water resources consumption, so it’s the limited and eliminated rotary kiln in China.

Product Specification （m）	Kiln dimensions					Motor power （kw）	Total weight （t）	note
Product Specification （m）	Diameter （m）	Length （m）	Obliquity （%）	Capacity （t/d）	Rotation speed （r/min）	Motor power （kw）	Total weight （t）	note
Φ2.5×40	2.5	40	3.5	180	0.44-2.44	55	149.61	-----
Φ2.5×50	2.5	50	3	200	0.62-1.86	55	187.37	-----
Φ2.5×54	2.5	54	3.5	280	0.48-1.45	55	196.29	outside disassemble kiln
Φ2.7×42	2.7	42	3.5	320	0.10-1.52	55	198.5	------
Φ2.8×44	2.8	44	3.5	450	0.437-2.18	55	201.58	outside disassemble kiln
Φ3.0×45	3	45	3.5	500	0.5-2.47	75	210.94	------
Φ3.0×48	3	48	3.5	700	0.6-3.48	100	237	outside disassemble klin
Φ3.0×60	3	60	3.5	800	0.3-2	100	310	------
Φ3.2×50	3.5	50	4	1000	0.6-3	125	278	disassemble klin
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	125	283	kiln with preheater precalcine
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	220	363	kiln with prehrater precalcine
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	125	419	Generating klin for usimg ofterheat
Φ4.0×56	4	56	4	2300	0.41-4.07	315	456	klin with prehrater precalcine
Φ4.0×60	4	60	3.5	2500	0.396-3.96	315	510	klin with prehrater precalcine
Φ4.2×60	4.2	60	4	2750	0.41-4.07	375	633	klin with prehrater precalcine
Φ4.3×60	4.3	60	3.5	3200	0.396-3.96	375	583	klin with prehrater precalcine
Φ4.5×66	4.5	66	3.5	4000	0.41-4.1	560	710.4	klin with prehrater precalcine
Φ4.7×74	4.7	74	4	4500	0.35-4	630	849	klin with prehrater precalcine
Φ4.8×74	4.8	74	4	5000	0.396-3.96	630	899	klin with prehrater precalcine
Φ5.0×74	5	74	4	6000	0.35-4	710	944	klin with prehrater precalcine
Φ5.6×87	5.6	87	4	8000	Max4.23	800	1265	klin with prehrater precalcine
Φ6.0×95	6	95	4	10000	Max5	950×2	1659	klin with prehrater precalcine
