Indirect Heat Drier

Shipping address: High-tech developmental zone, Zhengzhou, China
Application:Indirect heat drier is widely used in building materials, metallurgy, chemical industry, cement industrial, mining residue of limestone, clay, and other fields.
Introduction:Indirect heat drier indirectly pass heat to materials by heating the metal sleeve with high temperature hot air.

Contact customer service online

Features
Technical data

Indirect heat drier heats the metal sleeve with high temperature hot air, and then indirectly pass heat to material with the metal sleeve. Indirect heat drier is suitable for drying powdery material cannot be contaminated by soot or dust powder.

Dryer machine is with low outlet temperatures, long life of dust removal equipment, without gears driving, wheel driving and so on.

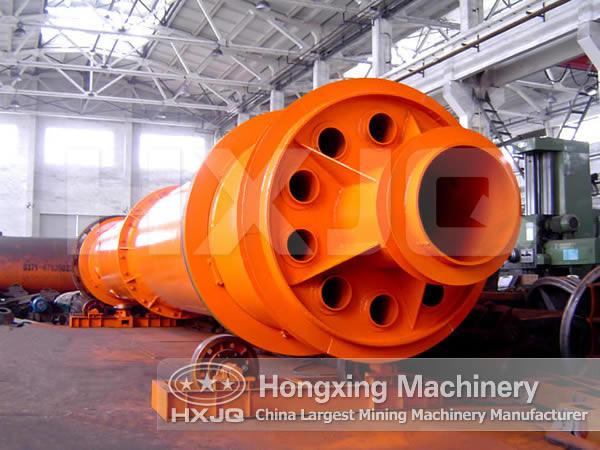

Indirect Heat Drier

Disadvantages are poor heat transfer efficiency and low productivity.

Spec./m (Dia.×Length）	Shell Cubage （m³）	Capacity （t/h）	Installation Obliquity （%）	Highest Inlet Air Temperature （℃）	Main Motor （kw)	Weight （t）
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

Technical parameters of indirect heat dryer:

Shell diameter ×shell Length Items	Inside diameter of outer shell （mm）	Inside diameter of inner shell （mm）	Shell Length （m）	Shell cubage （m³）	Shell obliquity	Lifting blade form	Highest inlet air temperature （℃）	Dimensions （m）
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15
