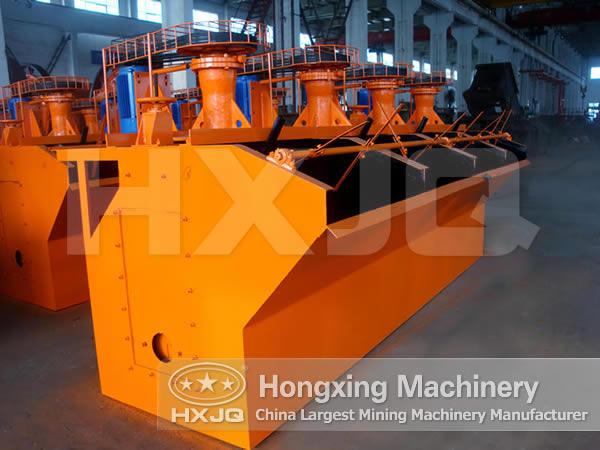

Flotation Cells

Shipping address:High-tech developmental zone, Zhengzhou, China
Business scope: Domestic and international trade
Effective volume:0.37-8m³
Production capacity:0.2-8m³/min

Contact customer service online

Features
Technical data

Main flotation cells produced by our company are BF type flotation separator, SF type flotation separator, XCF type flotation separator and KYF type inflatable mechanical flotation separator.

Flotation Cells

The service life of flotation cells is determined by daily maintenance. A careful examination every 3-4 months is necessary for flotation cells.

The flotation concentrator users must reserve a complete range of consumable parts in warehouse often, to avoid wasting unnecessary time when replacing wearing parts, for normal production.

Boot order: switch on gate switch, press the Start button.

After turning on, no hand touch rotating parts.

Category	Specification Model	Effective cubage （m³）	Processing capacity （m³/min）	Main shaft loam board				Dimensions (L×W×H) （m）	Single trough Weight （t）
Category	Specification Model	Effective cubage （m³）	Processing capacity （m³/min）	Power（kw）	Rotate Speed（r/min）	Rotate Speed(r/min）	Power（kw）	Dimensions (L×W×H) （m）	Single trough Weight （t）
XJK type flotation machine	XJK-0.35	0.35	0.18-0.4	1.5	483	25	1.1	0.7×0.7×0.7	0.5
	XJK-0.62	0.62	0.3-0.9	3.0	400	25	1.1	0.90×0.82×0.85	1.0
	XJK-1.1	1.1	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1	1.4
	XJK-2.8	2.8	1.5-3.5	11	280	25	1.1	1.75×1.6×1.1	2.5
	XJK-5.8	5.8	5-7	22	240	25	1.5	2.2×2.2×1.2	3.6
SF type flotation machine	SF-0.37	0.37	0.2-0.4	1.5	386	25	1.1	0.7×0.7×0.75	0.5
	SF-0.7	0.7	0.3-0.9	3	400	25	1.1	0.9×0.82×0.95	1.0
	SF-1.2	1.2	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.1	1.9
	SF-2.8	2.8	1.5-3.5	11	268	25	1.1	1.75×1.6×1.15	2.6
	SF-4	4	2-4	15	220	25	1.5	1.85×2.05×1.2	2.9
	SF-8	8	4-8	30	191	25	1.5	2.2×2.9×1.4	4.2
	SF-10	10	5-10	30	191	25	1.5	2.2×2.9×1.7	4.5
	SF-20	20	5-20	30×2	191	25	1.5	2.85×3.8×2	9.9
JJF type flotation machine	JJF-2	2	1-3	7.5	443	25	1.5	1.4×1.4×1.1	1.7
	JJF-4	4	2-4	11	305	25	1.5	1.6×2.15×1.25	2.4
	JJF-8	8	4-8	22	233	25	1.5	2.2×2.9×1.4	4.5
	JJF-10	10	5-10	22	233	25	1.5	2.2×2.9×1.7	4.9
	JJF-16	16	5-16	30	180	25	1.5	2.85×3.8×1.7	8.0
	JJF-20	20	5-20	37	180	25	1.5	2.9×3.8×2.0	10.5
