Agitation Vat

Shipping address:High-tech developmental zone, Zhengzhou, China
Effective volume: 0.26-30m³
Power range:1.1-22kw
Application:Agitation vat is used for mixing agentia and ore pulp with concentration lower 30% and ore concentration lower 3.5.

Contact customer service online

Features
Technical data

Agitation vat is a kind of mixing devices. Mixing barrel is generally used to mix and stir ore pulp and drug before flotation operation, for fully mixing pulp and pharmaceutical, and creating the conditions for processing operations.

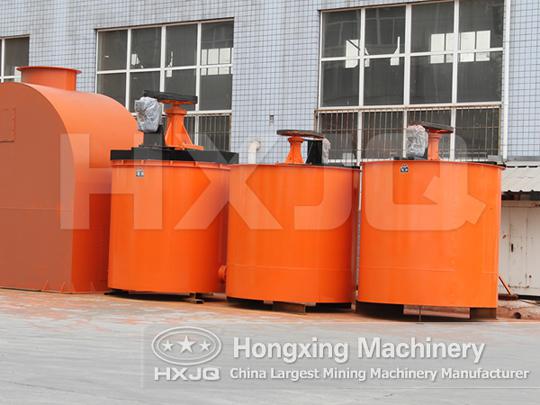

agitation vat

Mixing vat has simple structure, easy to operate, convenient to repair and maintain.

Axis of mixing vat is made of stainless steel blades, lacking of inertia, so it is also used in industries such as pharmaceutical, food, cleaning agents.

Category	Specification Model	Dimensions		Effective cubage(m³)	Rotate speed（r/min）	Motor power (kw)	Dimensions （L×W×H）（mm）	Total weight (kg)
Category	Specification Model	Diameter （mm）	Height （mm）	Effective cubage(m³)	Rotate speed（r/min）	Motor power (kw)	Dimensions （L×W×H）（mm）	Total weight (kg)
Agitating tank	XB-10×10	1000	1000	0.58	390	1.5	1130×1130×1521	1050
	XB-12×12	1200	1200	1.18	390	2.2	1130×1330×1721	1160
	XB-15×15	1500	1500	2.2	280	3.0	1750×1640×2190	1270
	XB-20×20	2000	2000	5.6	210	5.5	2380×2160×2850	1700
	XB-25×25	2500	2500	11.2	190	7.5	2990×2720×3540	3500
	XB-30×30	3000	3000	19	140	18.5	4030×3270×3010	5200
	XB-35×35	3500	3500	29	230	30	3920×3740×4970	6630
	XB-40×40	4000	4000	45	210	37	4520×4320×5570	7830
Lifting type	XBT-10×15	1000	1500	1	510	2.2	1130×1130×2070	1250
	XBT-15×20	1500	2000	2.9	400	4	1636×1768×2785	1677
	XBT-20×20	2000	2000	5.6	312	11	2180×2220×3015	3100
High- efficiency leaching tank	XF-20×20	2000	2000	7.07	82.5	1.5	2032×2032×3595	2400
	XF-25×30	2500	3000	13.5	57.6	2.2	2532×2532×4152	3670
	XF-30×30	3000	3000	22.97	50.0	2.2	3180×3180×4673	5340
	XF-35×40	3500	4000	35.6	41.0	4.0	3685×3685×5314	7140
	XF-40×45	4000	4500	52.78	33.5	4.0	4185×4185×5814	9300
	XF-45×50	4500	5000	74.75	33.5	5.5	4685×4685×6466	10500
	XF-50×56	5000	5600	102.1	30.6	5.5	5185×5185×6975	12300
	XF-55×60	5500	6000	135.4	24.4	7.5	5670×5670×7569	13500
