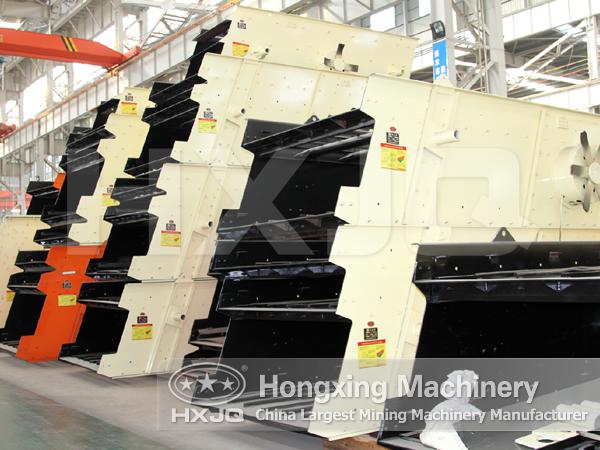

Circular Vibrating Screen

Shipping address: High-tech developmental zone, Zhengzhou, China
Feeding size: 400mm
Production capacity:8-800m³/h
Application:Round vibrating screen is widely used for product grading in ore dressing, building materials, transportation, energy, chemical industry, etc.

Contact customer service online

Features
Technical data

Circular vibrating screen has large capacity and high screening efficiency.

Circular vibrating screen has long service life, little electrical shock, stable vibration area, small load pivot point and so on.

No welding, beam is easy to replace.

Circular vibrating screen is easy to total disassembly and maintenance, easy to change, greatly reducing the repair cycle.

Circular Vibrating Screen

Model	Sieve layer	Sieve area (m2)	Mesh size (mm)	Max. feeding size (mm)	Processing capacity (m3/h)	Vibrating Frequency (r/min)	Double amplitude (mm)	Motor power (kw)	Sieve obliquity (°)	Sieve specification (mm)	Dimensions (L×W×H) (mm)
2YK1230	2	7.2	4-50	200	12-78	970	6	6P 7.5	20	1200×3000	3430×1860×870
3YK1230	3	10.8	4-50	200	13-80	970	6	6P 7.5	20	1200×3000	3570×1860×1210
2YK1237	2	8.88	4-50	200	15-86	970	6	6P 7.5	20	1200×3700	4050×1860×870
3YK1237	3	13.32	4-50	200	16-90	970	6	6P 7.5	20	1200×3700	4270×1860×1210
2YK1548	2	14.4	5-50	200	22.5-162	970	6	6P 11	20	1500×4800	5420×2210×1230
3YK1548	3	21.6	5-50	200	22.5-162	970	6	6P 15	20	1500×4800	5660×2210×1610
4YK1548	4	28.8	5-50	200	22.5-162	970	6	6P 18.5	20	1500×4800	6230×2210×2060
2YK1854	2	19.44	5-80	200	32-312	970	6	6P 22	20	1800×5400	5960×2550×1420
3YK1854	3	29.16	5-80	200	32-312	970	6	6P 22	20	1800×5400	6260×2550×1780
4YK1854	4	38.88	5-80	200	32-336	970	6	6P 22	20	1800×5400	6830×2550×2160
2YK2160	2	25.2	5-100	200	50-475	970	6	6P 30	20	2100×6000	6720×2840×1530
3YK2160	3	37.8	5-100	200	50-475	970	6	6P 30	20	2100×6000	7030×2840×1910
4YK2160	4	50.4	5-100	200	50-497	970	6	6P 37	20	2100×6000	7300×2840×2380
2YK2460	2	28.8	5-100	200	65-550	970	6	6P 30	20	2400×6000	7020×3140×1530
3YK2460	3	43.2	5-100	200	70-620	970	6	6P 37	20	2400×6000	7300×3140×1910
4YK2460	4	57.6	5-100	200	80-680	970	6	6P 45	20	2400×6000	7600×3140×2380
2YK2873	2	39.2	5-100	200	70-680	750	6	6P 37	20	2800×6440	7600×4320×1620
3YK2873	3	58.8	5-100	200	80-720	750	6	6P 45	20	2800×6440	7800×4320×2120
4YK2873	4	58.8	5-100	200	90-950	750	6	6P 55	20	2800×6440	7800×4320×2120

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
